Chemical tempered glass
Glass
Also known as Tempered glass by chemical
Functions: Glass with good pressure and optical and flatness
Applications: Instrument window, lens window, various touch screen panels
▽CSG1.1 ▽CSG1.8 ▽CT-Gorilla
▽Information and Notes
ITEM NO:CSDG0.4
Spectral Characteristics
Tave>90% @ 400-700nm
Physical Characteristics
Thickness: 0.4mm
Square: 3x3 - 300x400mm
Round: Dia3 - 300mm
Resistant Temperature
150℃
ITEM NO:CSDG0.5
Spectral Characteristics
Tave>90% @ 400-700nm
Physical Characteristics
Thickness: 0.55mm
Square: 3x3 - 300x400mm
Round: Dia3 - 300mm
Resistant Temperature
150℃
ITEM NO:CSDG0.7
Spectral Characteristics
Tave>90% @ 400-700nm
Physical Characteristics
Thickness: 0.7mm
Square: 3x3 - 300x400mm
Round: Dia3 - 300mm
Resistant Temperature
150℃

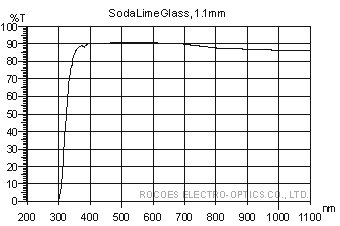

ITEM NO:CSDG1.1
Spectral Characteristics
Tave>90% @ 400-700nm
Physical Characteristics
Thickness: 1.1mm
Square: 3x3 - 300x400mm
Round: Dia3 - 300mm
Resistant Temperature
150℃

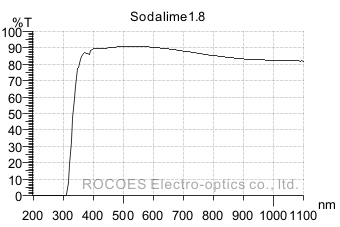

ITEM NO:CSDG1.8
Spectral Characteristics
Tave>90% @ 400-700nm
Physical Characteristics
Thickness: 1.8mm
Square: 3x3 - 300x400mm
Round: Dia3 - 300mm
Resistant Temperature
150℃

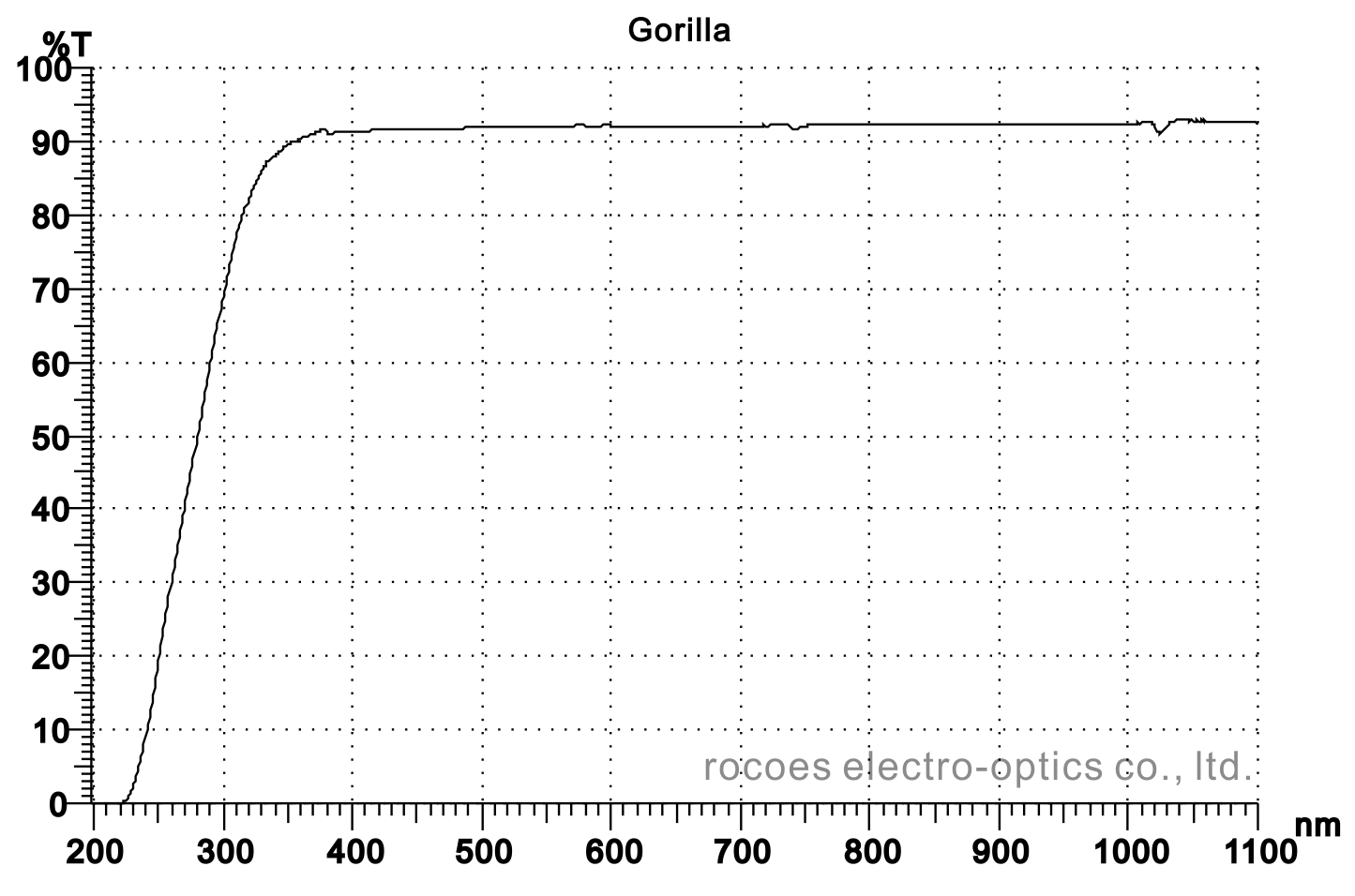

ITEM NO:CT-Gorilla (CORNING GORILLA with Chemicla Tempered)
Spectral Characteristics
Tave>92% @ 420-700nm
Physical Characteristics
Thickness: 0.5, 0.7, 1.1, 1.3mm(Standard)
Thickness: 0.2~1.3mm(Custom needs)
Square: 3x3 - 400x400mm
Round: Dia3 - 400mm
Resistant Temperature
450℃
*2318, 2319
Information and Notes
1. Chemical Tempered glass has better pressure resistance than ordinary glass, and is suitable for use as a panel or protective sheet for touch products such as mobile phones and tablets.
2. Special shapes or thicknesses can be cut or machined according to customer requirements.
3. The transmittance curves are measurements at 0°of incidence angle. The part that does not penetrate is absorbed by the material of the glass itself.
4. Need higher penetration? Please refer to anti-reflection processing.
5. Need to increase the impact resistance? Please refer to Tempered glass.
6. The highest safe temperature refers to the temperature at which the glass substrate itself can withstand without breaking under uneven heating or temperature difference. It can be higher in the case of uniform heating or small (slow) temperature difference change.
7. The website specifications are for reference only, and shipments are subject to the specifications confirmed by both parties.
8. For an introduction to the Soda-Lime ingredients and production process, please refer to the AGC Flat Glass Europe website.Float glass &technology
