    IR-cut filters/Hot mirror

    work1

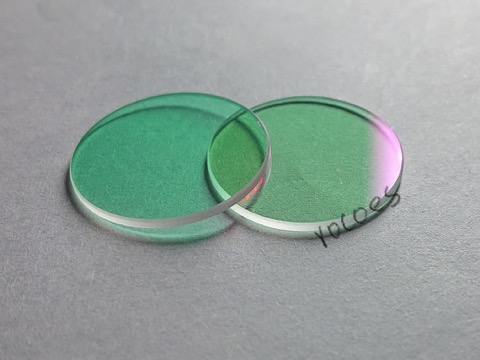

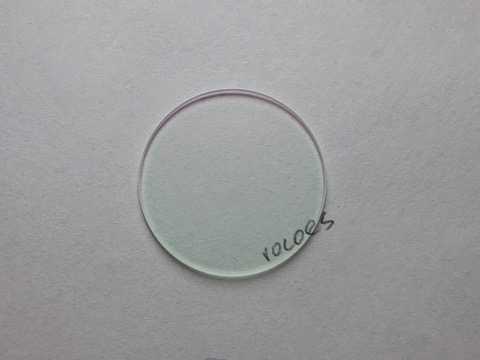

    IR-cut filters/Hot mirror

    IR Blocking filters, IR reflection filters

    IR Cut filter can reflect near infrared and high transmittance in visible wavelength.

    Functions:

    1. Visible wavelength high transmittance.

    2. UV wavelength absorb or reflection.

    3. Infrared wavelength reflection.

    Applications: Digital camera filters, PC / Web camera filters, Cell phone camera lens filters, CCTV lens filters.


    IRCUT650  ▽IRCUT710  ▽UVIRCUT+AR-385/725
    UVIRCUT+AR-400/730  ▽IRCUT880  ▽DN650/850
    Information and Notes


    IR-cut filters/Hot mirror

    ITEM NO: IRCUT650

    Spectral Characteristics

    T50%=650 +/-10nm

    Tave>88% @ 430-620nm

    Tave<3% @ 720-1050nm

    Physical Characteristics

    Glass: 0.4, 0.55, 0.7, 1.1mm

    Square: 3*3 - 160*160mm

    Round: Dia3 - 150mm

    Resistant Temperature

    Glass: 150℃

      IR-cut filters/Hot mirror

    ITEM NO: IRCUT710

    Spectral Characteristics

    T50%=710 +/-15nm

    Tave>88% @ 430-660nm

    Tave<3% @ 780-1050nm

    Physical Characteristics

    Borosilicate: 1.1, 2.0, 3.0mm

    Glass: 1.1mm

    Tempered Glass: 2.0, 3.0mm

    Square: 3*3 - 310*320mm

    Round: Dia3 - 300mm

    Resistant Temperature

    Glass: 150℃

    Tempered Glass: 250℃

    Borosilicate: 450℃

      UVIR-cut filters/Hot mirror

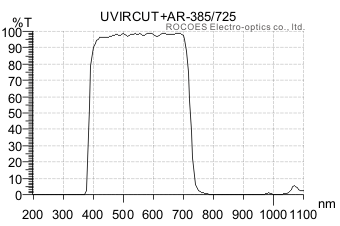

    ITEM NO: UVIRCUT+AR-385/725

    Spectral Characteristics

    Tave<1% @ 200-370nm

    Tave>95% @ 430-680nm

    Tave<3% @ 800-1000nm

    Physical Characteristics

    Borofloat: 1.1, 2.0, 3.3mm

    Glass: 1.1mm

    Square: 3*3 - 310*320mm

    Round: Dia3 - 300mm

    Resistant Temperature

    Glass: 150℃

    Borosilicate: 450℃

      IR-cut filters/Hot mirror

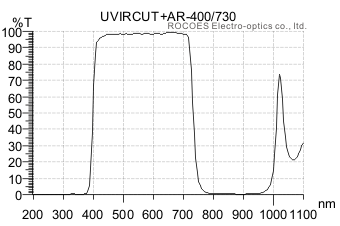

    ITEM NO: UVIRCUT+AR-400/730

    Spectral Characteristics

    Tave<2% @ 200-385nm

    Tave>95% @ 430-680nm

    Tave<3% @ 800-950nm

    Physical Characteristics

    Borosilicate: 1.1, 2.0, 3.0mm

    Glass: 1.1mm

    Square: 3*3 - 310*320mm

    Round: Dia3 - 300mm

    Resistant Temperature

    Glass: 150℃

    Borosilicate: 450℃

      IR-cut filters/Hot mirror

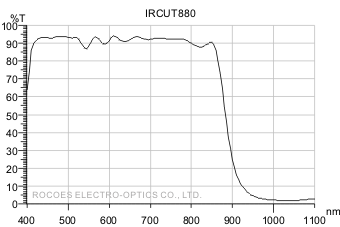

    ITEM NO: IRCUT880

    Spectral Characteristics

    T50%=880 +/-15nm

    Tave>90% @ 430-850nm

    Tave<5% @ 950-1100nm

    Physical Characteristics

    Borosilicate: 1.1, 2.0, 3.0mm

    Glass: 1.1mm

    Tempered Glass: 2.0, 3.0mm

    Square: 3*3 - 310*320mm

    Round: Dia3 - 300mm

    Resistant Temperature

    Glass: 150℃

    Tempered Glass: 250℃

    Borosilicate: 450℃

      IR-cut filters/Hot mirror

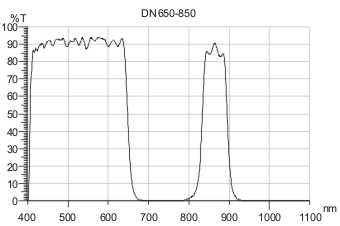

    ITEM NO: DN650/850 (For day and night)

    Spectral Characteristics

    T50%=650 +/-10nm

    Tave>88% @ 420-620nm

    Tave<3% @ 720-800nm

    Tave>80% @ 845-855nm

    Tave<3% @ 950-1050nm

    Physical Characteristics

    D263: 0.21, 0.3mm

    Glass: 0.55, 0.7, 1.1mm

    Square: 3*3 - 310*320mm

    Round: Dia3 - 300mm

    Resistant Temperature

    Glass: 150℃

    D263: 250℃


    Information and Notes

    1. IR cut filters with 36~48 thin film layers which vacuum-deposited on substrate.

    2. IR cut filters are designed with 0°of incidence angle, the larger incidence angles shift the characteristics to long wave side.

    3. Coating by PVD-EBGE (Physical Vapor Deposition-Electron Beam Gun Evaporation).

    4. Non-standard size filters are also available upon request.

    5. The transmittance curves are measurements at 0°of incidence angle.

    6. The transmittance curves are based on actual measurements and may be different with manufacturing lots.

    7. B270, D263T, BOROFLOAT33 is trademarks of SCHOTT AG.
