Al Mirrors/Mirrors
Mirrors/Mirrors
Name: Aluminum Mirrors/ AL Mirror, Front Mirror, HR Mirrors.
Functions: Mirrors could reflect light or images, However, reflection are different between these mirrors, normal mirror (such as bathroom mirror) is the lowest, Aluminum Mirrors with good reflection in wild wavelength, High Reflection Mirrors with almost 100% reflection. AU Mirrors with good reflection in infrared.
Applications: Laser equipment, Optical/Image equipments, AOI.

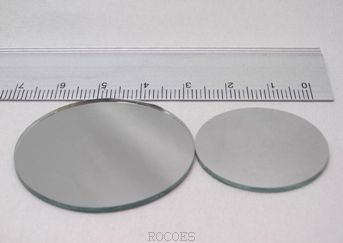

ITEM NO: ALMIRO (Aluminum Mirrors)

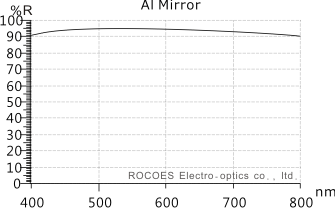

Spectral Characteristics
Rave>94% @ 430-670nm
Physical Characteristics
Glass: 1.1, 1.25, 2.0, 3.0mm
Square: 8x8 - 500x500mm
Round: Dia8 - 450mm
Resistant Temperature
Glass:150℃
Information and Notes
1. We also ofer coating service by customer's substrates.
2. Multi-layers are vacuum-desposited as the protectiove coating of alimium flat mirror.
3. Coating by PVD-EBGE (Physical Vapor Deposition-Electron Beam Gun Evaporation).
10. Browse below for more information and products,
*Dichroic Mirrors-Reflect various colors.
